Cannot establish communication : 500 Can't connect to

I have a problem with SNMP function and I would need help to know if there's a cert problem or a server installation mistake. I read that we need to configure ocsinventory-agent.cfg this way to make SNMP function works:

basevardir=/var/lib/ocsinventory-agent
debug=1
download=1
ca=/etc/pki/CA/certs/cacert.pem
tag=OCS Server
server=https://10.194.97.125/ocsinventory
logfile=/var/log/ocsinventory.log

I have the next log when ocsinventory-agent.cfg is configured this way:

 [Tue Sep 20 14:32:04 2016][debug] [download] Calling download_start_handler
[Tue Sep 20 14:32:04 2016][debug]  - LWP loaded
[Tue Sep 20 14:32:04 2016][debug]  - LWP::Protocol::https loaded
[Tue Sep 20 14:32:04 2016][debug] Compress::Zlib is available.
[Tue Sep 20 14:32:04 2016][debug] Calling handlers : `prolog_writer'
[Tue Sep 20 14:32:04 2016][debug] sending XML
[Tue Sep 20 14:32:04 2016][debug] sending: <?xml version="1.0" encoding="UTF-8"?>
<REQUEST>
  <DEVICEID>ocsinventory-ng-2016-09-20-12-23-35</DEVICEID>
  <QUERY>PROLOG</QUERY>
</REQUEST>
[Tue Sep 20 14:32:04 2016][error] Cannot establish communication : 500 Can't connect to 10.194.97.125:443

Otherwise, when we configure the ocsinventory-agent.cfg file with server=http://10.194.97.125/ocsinventory ( without https ), we get this log:

  <RESPONSE>NO_ACCOUNT_UPDATE</RESPONSE>
</REPLY>
';
[Tue Sep 20 14:37:59 2016][debug] =END=SERVER RET======
[Tue Sep 20 14:37:59 2016][debug] Calling handlers : `end_handler'
[Tue Sep 20 14:37:59 2016][debug] [snmp] Calling snmp_end_handler
[Tue Sep 20 14:37:59 2016][debug] [download] Calling download_end_handler
[Tue Sep 20 14:37:59 2016][info] [download] Beginning work. I am 3245.
[Tue Sep 20 14:37:59 2016][info] [download] No more package to download.
[Tue Sep 20 14:37:59 2016][debug] [download] End of work...

So the agent is reaching the server, but obviously  can't execute the SNMP function because the current ocsinventory-agent.cfg configuration.

--------------------------------------------------

Said that, why is there an 500 connection error when we configure ocsinventory-agent.cfg file with server=https://10.194.97.125/ocsinventory, if in fact the server is configure this way ?

asked in SNMP by (140 points)
edited by

1 Answer

0 votes
Hi,

How have you build your certificate?

Regards

Frank
answered by (59.3k points)

I just saw what was missing. Now SNMP feature is working because ocsinventory-agent.cfg have the value ssl=0 specified.

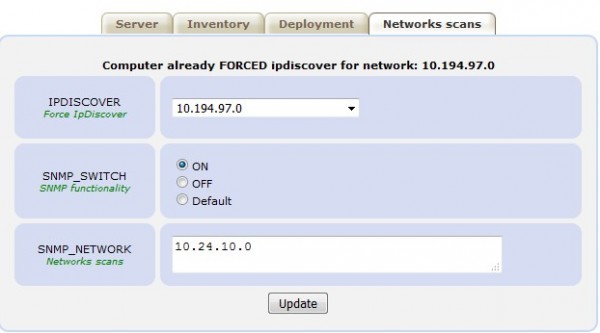

However, SNMP only scans in the same network where is located the agent, even if I specify a different one as I shown in the next screen

What's what I'm missing ?The OCS Server es 2.1.2 version

I'm reaching that network through snmpwalk by the way:

root@ocsinventory-ng ~# snmpwalk -v 2c -c 'SportiumOCS' 10.24.10.100
SNMPv2-MIB::sysDescr.0 = STRING: Linux md-vscores 3.16.0-30-generic #40~14.04.1-Ubuntu SMP Thu Jan 15 17:43:14 UTC 2015 x86_64
SNMPv2-MIB::sysObjectID.0 = OID: NET-SNMP-MIB::netSnmpAgentOIDs.10
DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (395429) 1:05:54.29
SNMPv2-MIB::sysContact.0 = STRING: IT Support <it.support@sportium.com>
SNMPv2-MIB::sysName.0 = STRING: md-vscores
SNMPv2-MIB::sysLocation.0 = STRING: Madrid - ESXiv4 VM Solution
SNMPv2-MIB::sysServices.0 = INTEGER: 72
SNMPv2-MIB::sysORLastChange.0 = Timeticks: (0) 0:00:00.00
SNMPv2-MIB::sysORID.1 = OID: SNMP-MPD-MIB::snmpMPDCompliance
SNMPv2-MIB::sysORID.2 = OID: SNMP-USER-BASED-SM-MIB::usmMIBCompliance
SNMPv2-MIB::sysORID.3 = OID: SNMP-FRAMEWORK-MIB::snmpFrameworkMIBCompliance
SNMPv2-MIB::sysORID.4 = OID: SNMPv2-MIB::snmpMIB
SNMPv2-MIB::sysORID.5 = OID: TCP-MIB::tcpMIB

Need support please
